Much like the soil food web, the aquaculture food web of Perma-Aquaculture system is an interrelated system based on predator-prey relationships with photosynthesis adding a primary energy source.  It starts with primary producers, those using photosynthesis to build the base of the web.  Varying niches are filled within the water and around the banks.  Some float, some are rooted, some break the water’s surface and some do a combination of two.

Pond ecology Aquaculture Food web

Aquaculture Food Web: Plants

The plants within the aquatic system can be broken into the following four categories:

  • Free floating plants

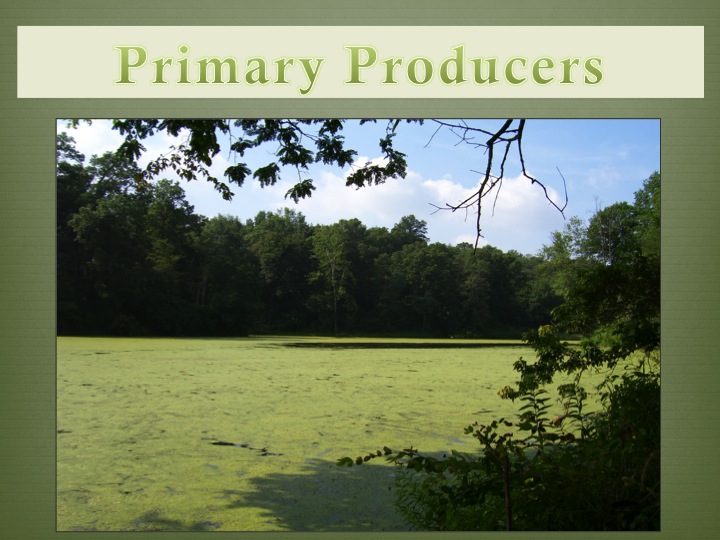

    Primary producers: aquatic free-floating plants- duckweed on the surface, green color of algae, and the shoreline terrestrial plants

  • Emergent Plants
  • Submergent Plants
  • Floating leaved Plants
  • (read in much more detail about these plants here)

From there we must also consider the smallest of the primary producers in the pond called phytoplankton and algae.  These are micro in size and suspended in the water column.  Their presence, especially in high numbers, gives the body a green or red tint or color depending on the species and water. The other aquatic plants are cycling nutrients, giving food to the ecosystem and other necessary functions such as providing oxygen to the water body, cleansing, and habitat.

These plants are supported by terrestrial vegetation as well because no Permaculture aquaculture food web would be complete without beneficial interactions.  Hence the aquatic system benefits the land and vice versa.  The land based plants can provide food directly such as the leaves of cassava for tilapia or fringing grasses for carp, but also can be prepared into a homemade fish food.  This comes from combining grain and fruits to make our own pellet feed.

From here life turns to death as this cycle is inevitable.  This creates the basis of decomposition, again, both on land or at the pond bottom.  When it is at the bottom it is called detritus where the breakdown process occurs and organic material develops.  This begins the nutrient cycling just as composting on land would occur.

The main characters that perform this decomposition and nutrient cycling are similar to a compost pile.  However, in aquatic systems they are Bacterial driven unlike a forest system that is dominated by fungus.  Bacteria are abundant in numbers and through their eating and reproducing they consume vast amounts of oxygen in a limited oxygen environment within the water body.  This is why we simply can’t dump vast quantities of fertilizers into the water.  Furthermore this is why algae blooms due to fertilizer or animal waste runoff is so destructive to the aquatic system.  What happens is the overabundance of nutrients allows algae or other aquatic plants to flourish but with their life comes death and the decay process.  So the bacteria populations explode due to the organic matter input and over-consume oxygen causing system failure known as fish kills.

Other breakdown organisms are fungi, although their numbers are low and often are

Vermi-composting for aquaculture

pathogens in water.   Also are the benthic invertebrates which live on the pond bottom.  They breakdown leaves and other organic material that find their way to the pond bottom.  Also breakdown organisms in our systems include land based ones as again our interactions must bring land into the system.  So worms and maggots can be grown as waste decomposers and then fed to the fish and ducks.

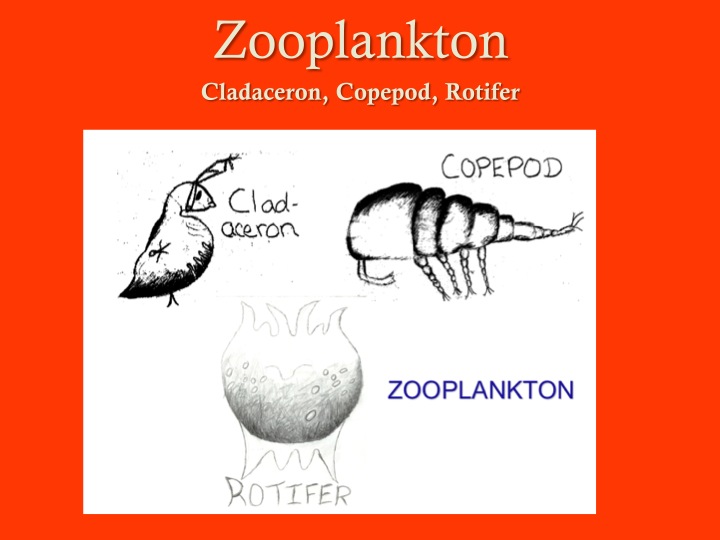

This builds a further base and the next character in the web is zooplankton and protozoa.  These feed on other organisms and through this predator-prey relationship nutrients are cycled.  Its like grass being grown for a cow.  Phytoplankton use photosynthesis and add oxygen to the water column.  They then are feed on by Zooplankton.  Just as the cow is eaten by other predators such as mountain lions or humans, zooplankton form the main feed base for you fish.  They are a high protein source and give the young fish the energy they need to put on growth quickly so they move out of danger size.

In this web, the connector of many of the elements are the adult fish which in this case is Tilapia.  They are omnivores and have a broad range of foods.  They don’t eat other fish in general and are a great selection for aquaculture.

It is through sensible stimulation of the primary producers that we can grow fish more quickly in our Perma-aquaculture systems.  Adding chicken manure or incorporating ducks into the system can really benefit the overall organism.  It is important to have a balance though as we don’t want system failure due to a lack of oxygen from too many nutrients.  There are ways to infuse oxygen into the system mechanically and biologically through aeration which can allow you to put more nutrients into the water.  A careful examination of water quality is really important in this context.


Our design of systems ties into our species selection and these water quality parameters that can be limiting factor in water.  the clarity of the water, its temperature, and its oxygen quality all have an effect.  Are you growing Tilapia or trout, the two are totally different ecosystem you will be mimicking ad require good design to perpetuate either without consuming more calories than you put in.  Remember aquaculture can be 4-20 more productive than our land based systems and we need to design it to make it 20 instead of 4.

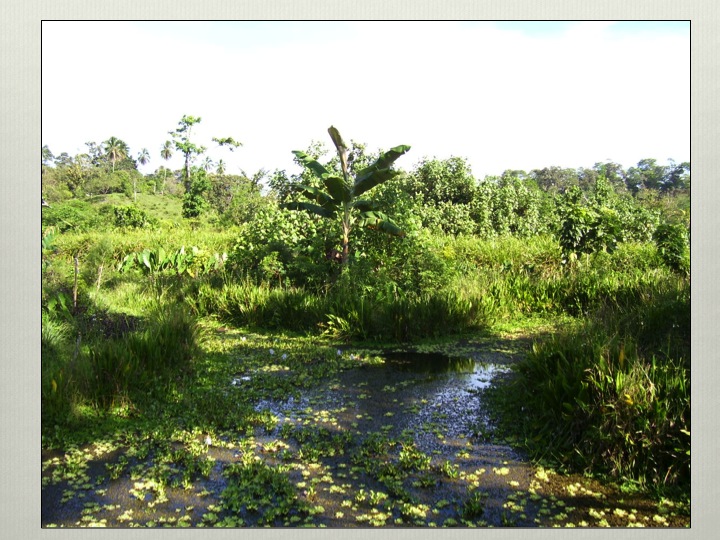

chinampa- reconstructed wetlands Bocas del Toro, Panama

Written by Doug Crouch

Header art by Sien Verpoest
