Tropical Housing

Introduction

Having had several stints in the humid tropics throughout my Permaculture work (2005-2016), I have come to better understand the design topics addressed by Mollison in his books regarding this climatic context of housing.  During those tropical times, I inhabited several concrete buildings and the living conditions were intoxicating.  Molds would build, air quality was low, humidity was high, and a sense of comfortability was hard to acquire.  I don’t mind much when it comes to housing other than molds and it was downright terrible.  This is why he advocates several things we will cover below and can be briefly summarized quickly through the following points:

• shading the house
• creating cooling through cross ventilation
• removing sources of heat from within the house.

Thatch roof community house, on granite stilts, lots of air flow, steep roof, caesarean posts and split for flooring below the mats

Design and Application Considerations

Consequently the design of the building focuses on materials, site location, and orientation.  One strategy he suggests is that structures be light and airy rather than dense material like concrete or cob.  While this does invite the passing creature and some mosquitos here and there if completely open, it does create air flow which is a vital consideration.  By keeping structures light they can be easily up off the ground on stilts, as the pictures above and below show. This affords air flow to be all around the house and when the houses are orientated with the prevailing winds, cross ventilation can ensue.  Building on stilts also helps with tropical flooding events, which happen regularly because of the intensity of rains and landscape degradation.  To make the structures light he suggests wood for solid construction, which can be seen again both above and below in different fashions.  The one below shows the

sadhana forest housing, buildings made of light and airy materials and on stilts

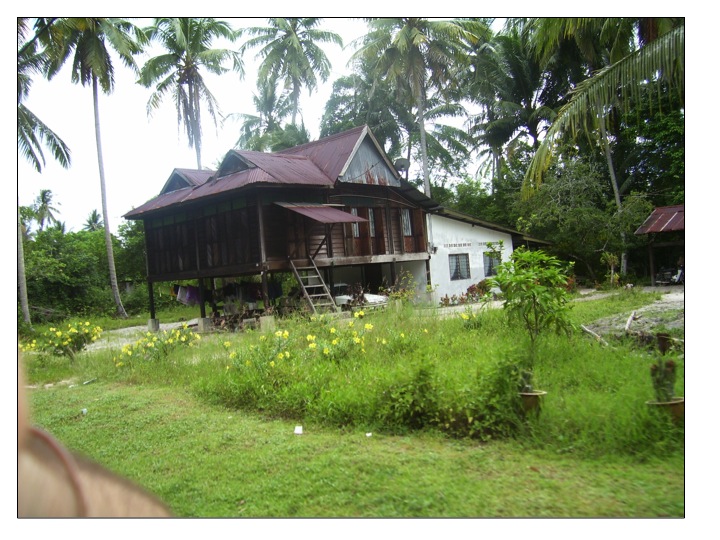

dichotomy of colonization, the brown house on the left, a typical elevated wooden Malaysian house, where as the British influenced, concrete white house that you see on the right.  Concrete acts as a thermal mass and retains moisture due to its lack of breathability thus causing the discussed above poor air quality and uncomfortability.  The only time I have seen effective tropical housing with high thermal masses was in South India in the more dry tropics.  To compensate they had huge thatch roof overhangs so that there was no sunlight charging the thermal mass of the walls. With an earthen structure it breathes much more easily and with the huge switches of temperature in the dry tropics it makes more sense there as well.  Furthermore, the only negative of the Malaysian wooden structure below, which would have been different traditionally, is the metal roof.  While effectively keeping water and critters out, thatch is a much better insulator against the heat that is conducted into the building from this material choice. The base resource of thatch has been decimated in habitat loss so its understandable the choice of metal. In this case of metal, the roof can be painted white to help reflect heat and not conduct heat into the living spaces.  Roofs in general in the tropics should be steep to shed water quickly no matter the material. Furthermore, the snapshot seen in the slide below was while hanging out the window in a Malaysian countryside car ride and it does show another set of techniques that Mollison recommends.  First is the observation that

Jungle Hostel kitchen view from 2005, too dense  with vegetation surrounding

there is little vegetation directly around the house.  In the jungle hostel that I helped to run at a Permaculture Farm in Costa Rica (2005-2006), this was the direct opposite with vegetation all around and even creeping into the house a bit.  It was nice to see the toucans literally a few feet away on the back porch but the jungle overgrowth held too much humidity and decreased air flow.  What Mollison does advocate in terms of vegetation is exactly what you see below with the palms trees occupying the canopy space to deliver some shade to the roof but far away from the house where there is no immediate danger of falling coconuts. This allows cross ventilation breezes to flow with no impediment. Vegetation near the house can help in one aspect which is by creating a shade house on one side of the house to create a cooler temperature concentration through trellising vines. This will create air flow through temperature difference especially when combined with letting out the heat through elevated vents.  Using vents in the ceilings or top of the house moves air since the hotter air will rise and then can escape freely.  In the picture below the small triangles at the top front do exactly this. The windows in this house below as have screens on the window which does keep insects and critters away.  They are often fitted with shutters to be closed in an intense storm situation.

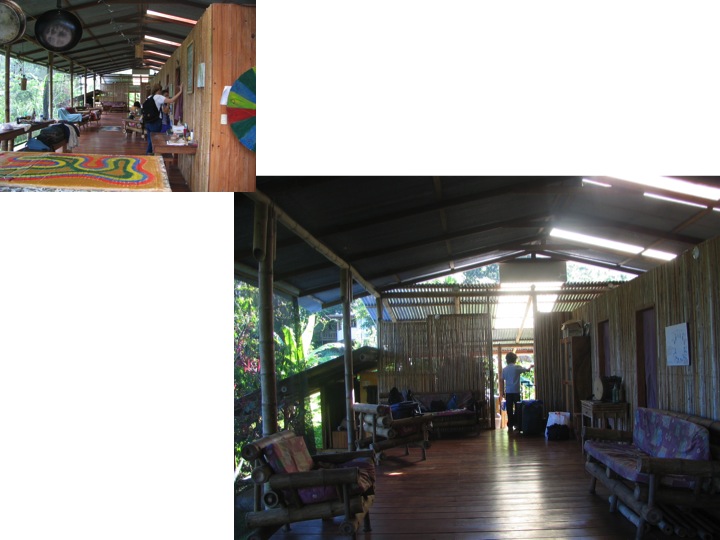

The picture below is another structure from the farm I worked at in Costa Rica that served as a guest house.  It was called the bamboo house as the interior walls were made of bamboo. Mollison also advocates the use of light materials in interior walls to reduce heat build up and keep the structure light.  Like the top picture which the structure was made out of Casuarina, we had to be diligent in looking for termites crawling up and cycling carbon which is not what you want from a house.  In the design and build phase, it is imperative to make sure these materials are not in contact with the ground.  Bamboo is fantastic building material but is not at all ground durable and does attract termites if not properly cured.  Thus it was built up off the ground and used concrete footers where the top picture of the thatch roof building in India used the tradition of long, rough carved, granite pillars for stilts.

Housing Auxiliary Features

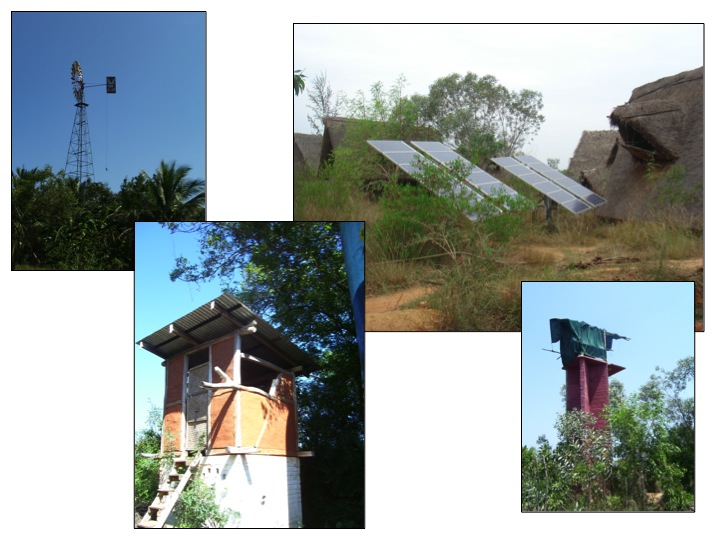

Like anywhere else, tropical houses have inputs and outputs.  One input is electricity, which is often sporadic in tropical nations so it can help to be off the grid.  One of the best forms of an appropriate technology there and usage of electricity, in my opinion, is a fan.  Even with the best design of cross ventilation and other strategies discussed, a fan can go a long way to help keeps molds away and air circulating.  Moreover, on the slide below the two right pictures were the domestic electricity supply through solar and the garden water supply.  Because huge arrays are not always economically feasible with their associated batteries, this project in South India (Sadhana Forest) where I taught a PDC in 2009, created a battery pack for the water through an elevated water tank thus enacting the principle of energy cycling.  This would allow us to water the garden very early in the morning as the sun was rising each day without using the pump in that moment.  Thus we were using gravity as the energy stored with the water held in this elevated position.  Another wonderful appropriate technology in the tropics is the compost toilet.  Because sanitation can be poor there and microbes thrive so intensely, the use of concrete is applicable in the chamber part to deal with the heat, humidity, and possible flooding.  It is concrete, I know, but I do feel its an appropriate choice especially after one project I was at in the tropics and felt like sanitation was poor and sickness swept through our project rapidly.  This was in part because the chamber was sunken and not a great design. The concrete or plastic, but harder to come by often, container allows the chamber to be elevated and no risk of groundwater contamination.  It’s easier to clean out and composted properly from there.  Other housing considerations include domestic water supply so on the slide below top right, I have included an appropriate technology that I saw quite a bit in India which was using a windmill to power a water pump.  This would lift groundwater again to an elevated tank where it could be gravity fed when needed and rely on biological resources to meet needs.

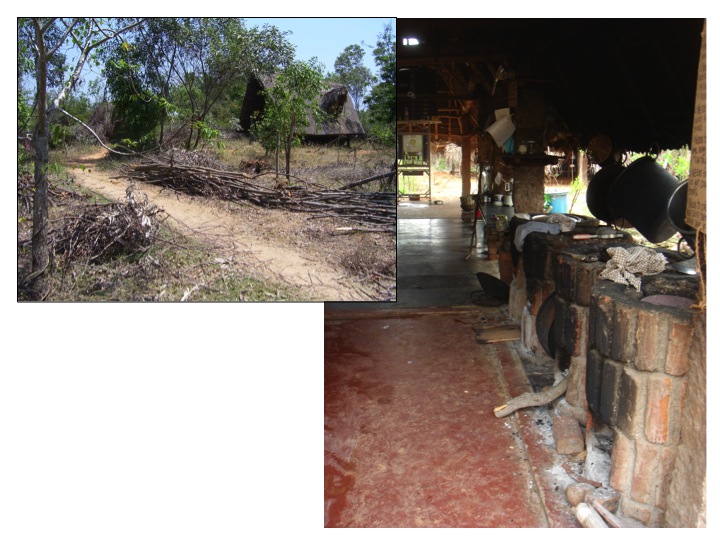

Another housing concern of Mollison’s for the tropics that he addresses is the use of outdoor kitchens.  Cooking can really heat up a house and make life uncomfortable inside the house because of heat but also smoke.  Lots of people in the tropics are still cooking with rudimentary stoves inside the house and women in particular suffer the consequences of poor fire combustion and the noxious smoke that is delivered afterwards inside the house.  Thus the research and development and subsequent avocation of the use of rocket stoves by the Aprovecho team from Oregon is addressing this exact need.  This technology allows for more efficient burns creating much less smoke and also very importantly using less fuel. Because deforestation is rampant from relying on this fuel resource instead of a gas bottle or electricity like in the more northern countries of the world, rocket stoves and other appropriate technologies can have a positive cascading effect to the landscape around including water and soil fertility. It is often nitrogen-fixing trees that are cut as they burn hot and grow fast.  Keeping these trees from being cut so frequently can spell the difference between the flood and drought syndrome that produces famine and instability.  Thus the pictures below shows fallen trees from a cyclone in India knocking down invasive acacias and supplying our fuel cooking needs. So this problem of an “invasive” tree became the solution for our cooking needs which we leveraged with the rocket stove design seen on the right below to make it efficient and cook for over 100 people a day. It was housed in its own outdoor kitchen space which could be applied to individual houses.

Rocket stoves are not the only option for cooking in the tropics as many are trying to break down this cultural conditioning of cooking with wood and get people to also utilize the power of the sun.  Many NGO’s are doing such work and some friends of mine from my hometown of Cincinnati, Ohio, USA are working with the U.N. to help spread their technology (GoSun).  They have had good success at bringing their stoves into villages in Guatemala and are expanding such work to other places.

GoSun Empowerment

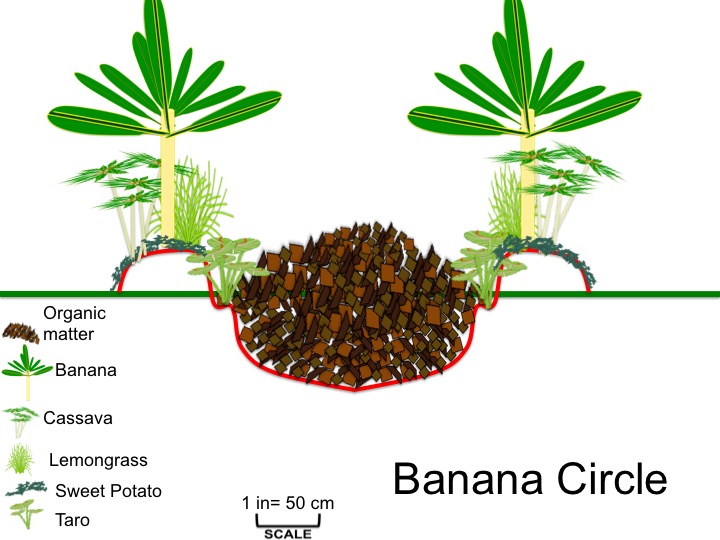

Outputs of the house include greywater and food wastes.  Both can go to the same location which is a wonderful design feature known as the banana circle.  By combining the two, heaps of organic matter will be cycled very quickly into food and biomass producing plants.  They are located not too far from the house in zone 1 usually as to reduce the costs of piping.  A channel could lead from an outlet behind the house, which is commonly seen in the tropics, to the banan circle.  Seen  in the slides below, as well as banana circle schematics, are a list of plants we used in the humid tropics for greywater.  These can also produce food and biomass and are a drastic improvement of just the pipe leading out of the back of the house. These are just a few examples of how building with good design are met by the advantages of utilizing appropriate technology and matching inputs and outputs.

greywater buckets going into the banana circle

Banana Circle serving as a greywater system as part of an overall design with aquaculture, swale, hedgerows, and garden terraces

Written by Doug Crouch

Header Art from Anita Tirone

Sources:

Mollison, B. & Slay, R.M. (1991) Introduction to permaculture. 2nd Edition. Sisters Creek, Tasmania, Australia. Tagari.
